project ... [townhouses]
collaborators ... Linnea Brosé, David Edlund
location ... Sweden, Gothenburg, Lillhagen
year ... 2022
. . .
11 brick townhouses planned for a small suburban setting in Lillhagen north of Gothenburg, Sweden. With this project, we wanted to create varied housing of different sizes that appeal to people in different walks of life. Furthermore, the exterior is kept structured and similar in all the different sizes to create a cohesive area within itself and with the surrounding architecture.
. . .
With this project, extra thought was also put into technical details regarding construction, and calculations were carried out analyzing energy consumption and moisture transportation through building elements.

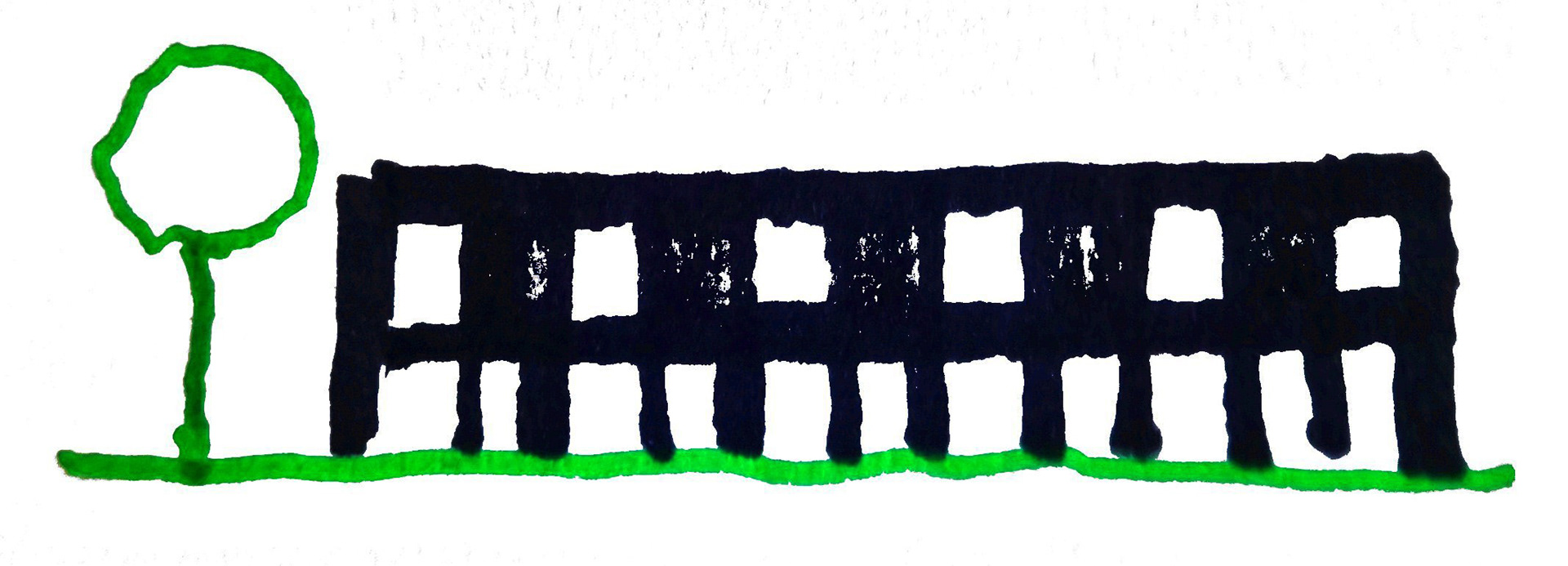

(1) Facade sketch
(2) Facade rendered image

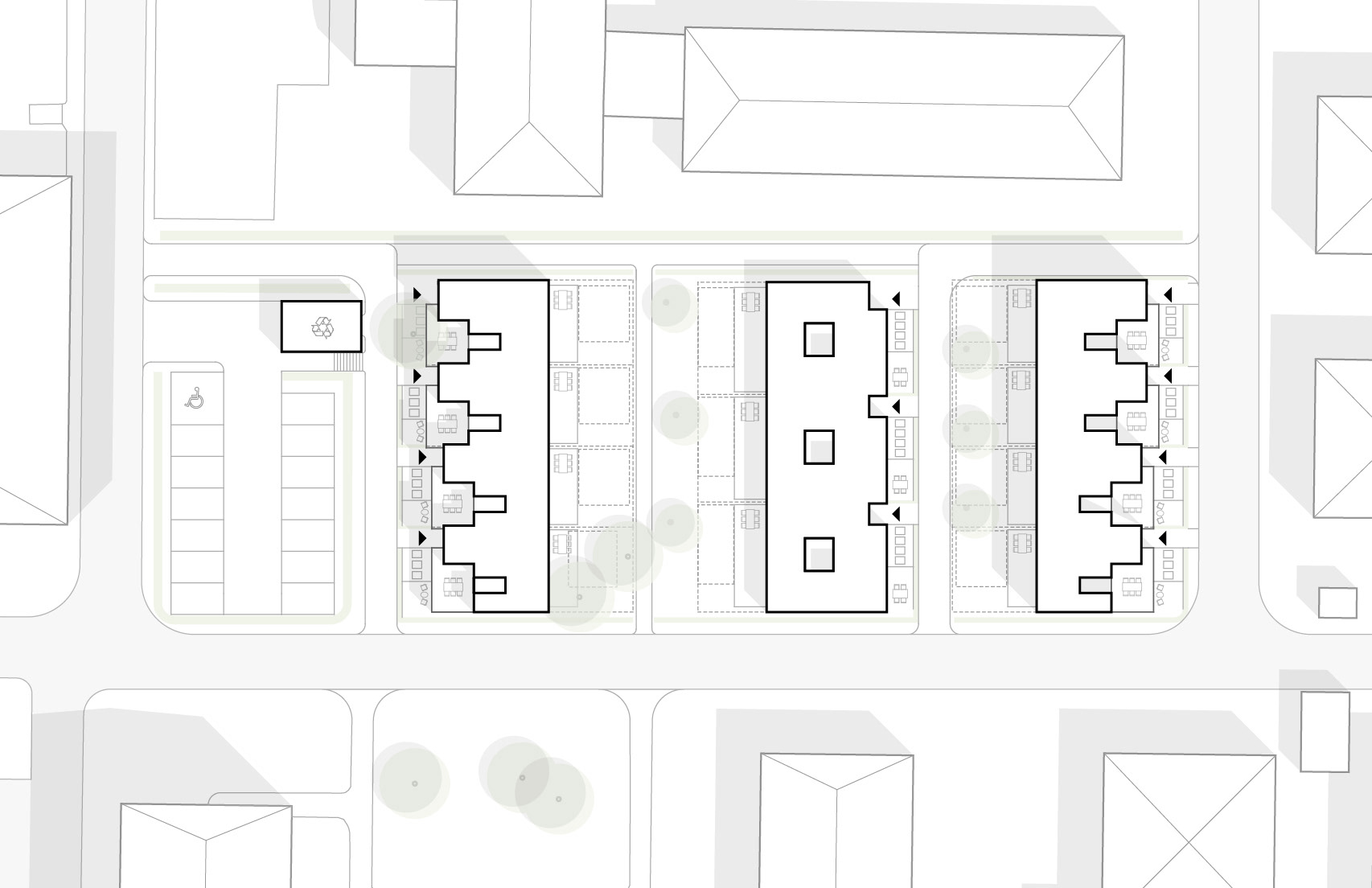

(3) Site Plan showing the three rows of houses perpendicular to the street.
(4) Site section showing the proportion of the spaces between the three volumes.
(5) Rendered exterior image of the bigger backyard
(6) Plan of the 100sqm, one floor variant. Fully enclosed atrium and 2 bedrooms.

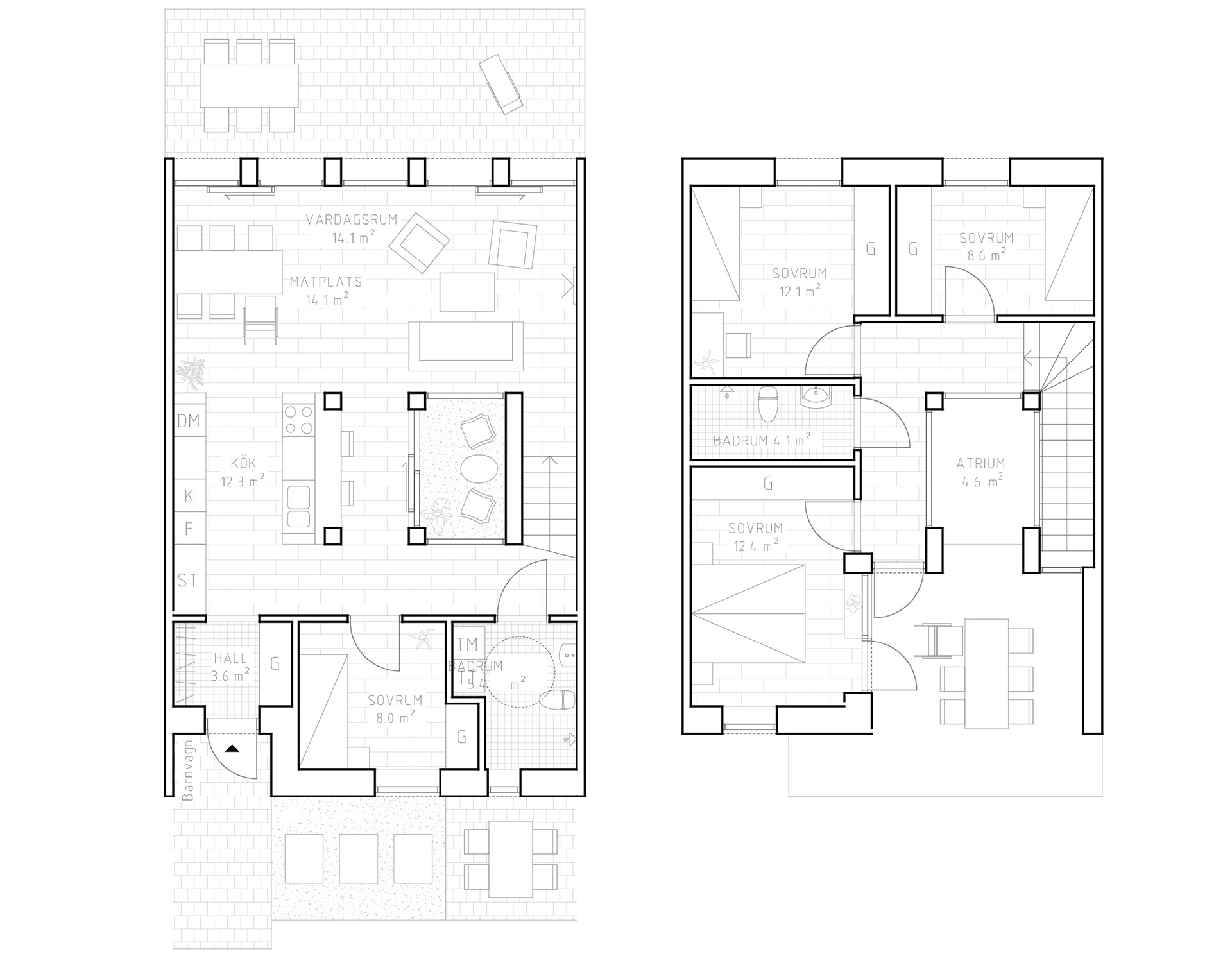

(7) Plan of the 145sqm, two-floor variant. Fully enclosed atrium and four bedrooms.
(8) Rendered image of an interior living room of the 145sqm variant.
(9) Detail section of the 145sqm variant

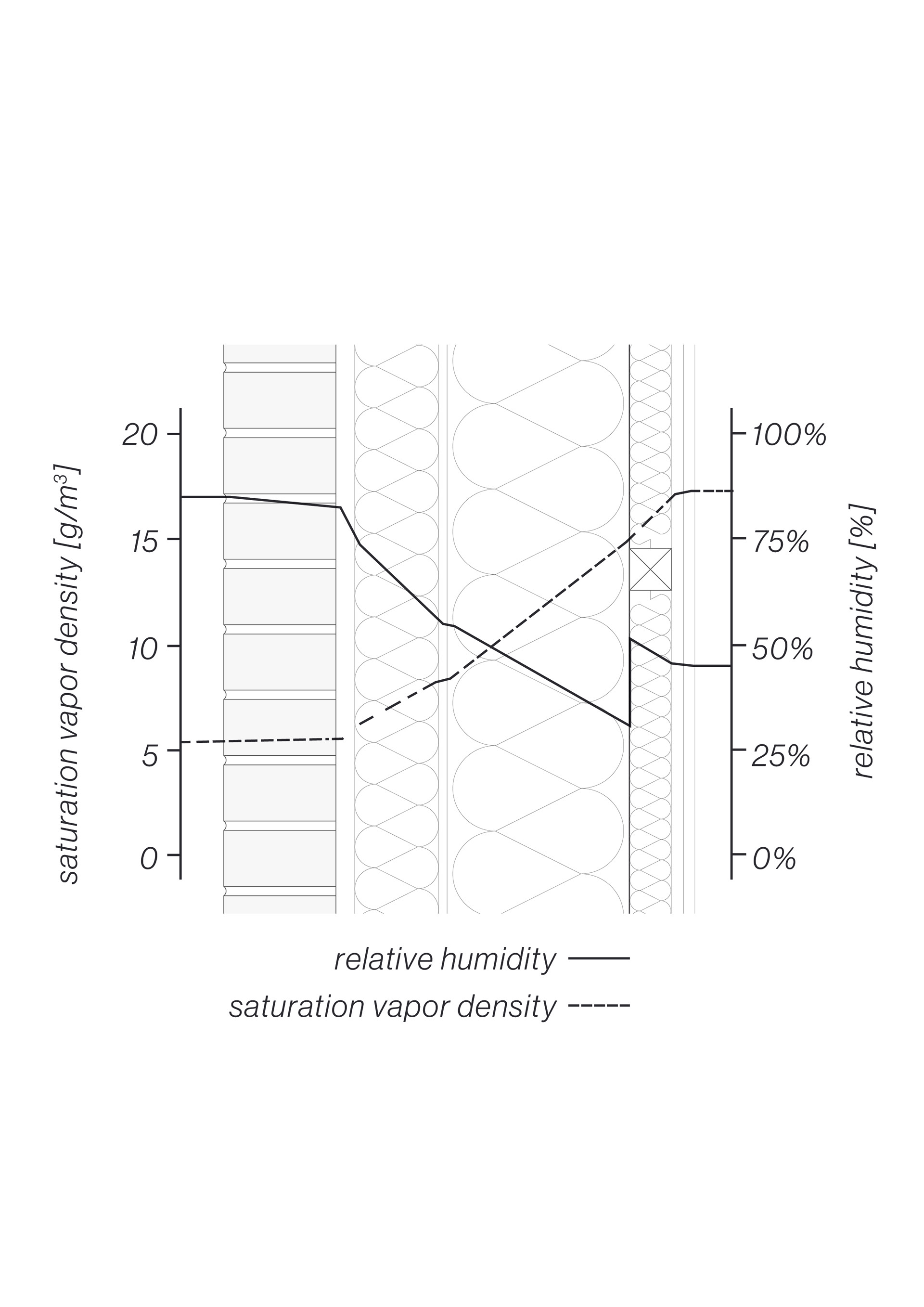

(10) Vapor distribution
(11) Facade of both variants.

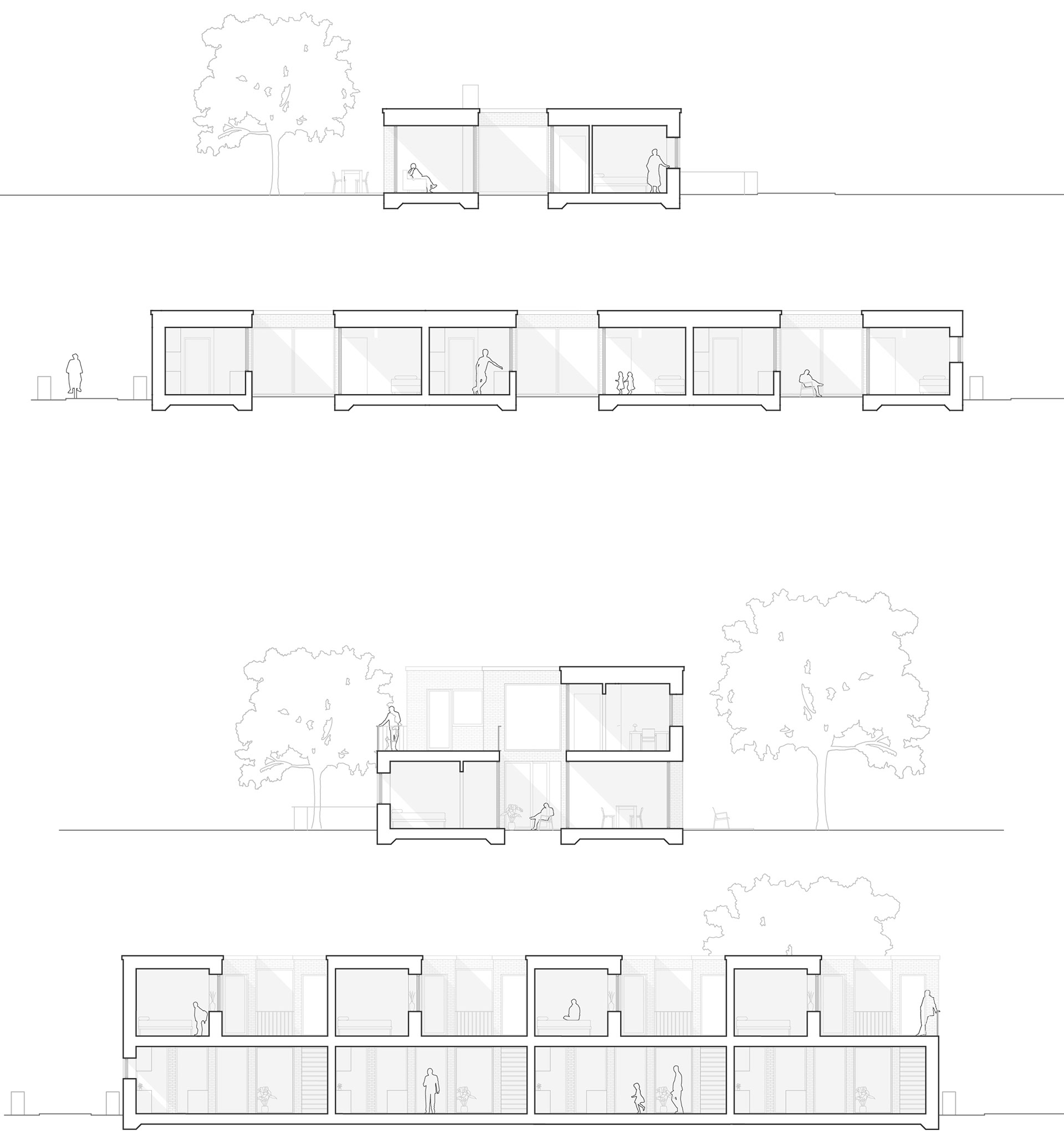

(12) Section of both variants.

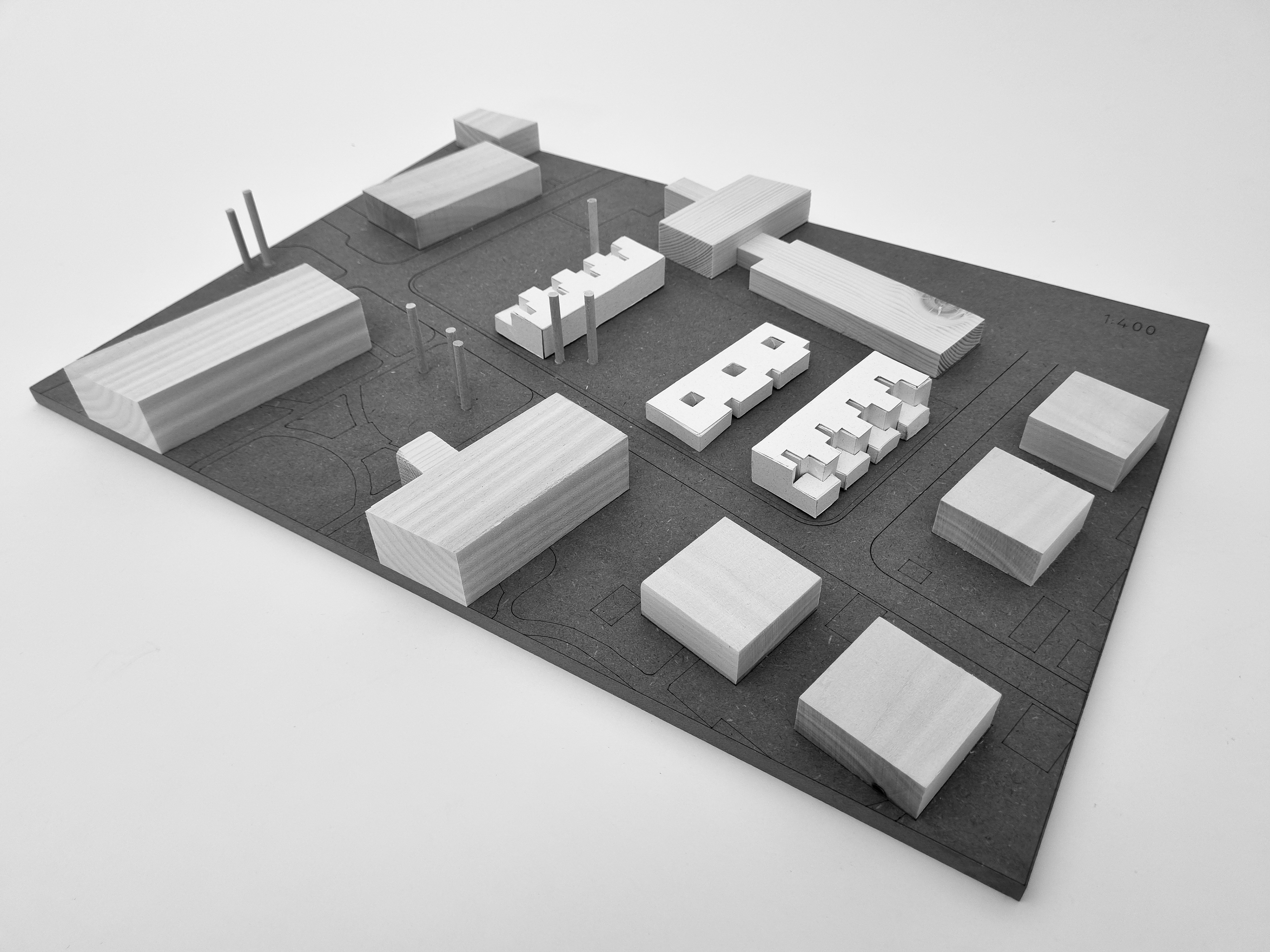

(13) Site model in wood and paper.

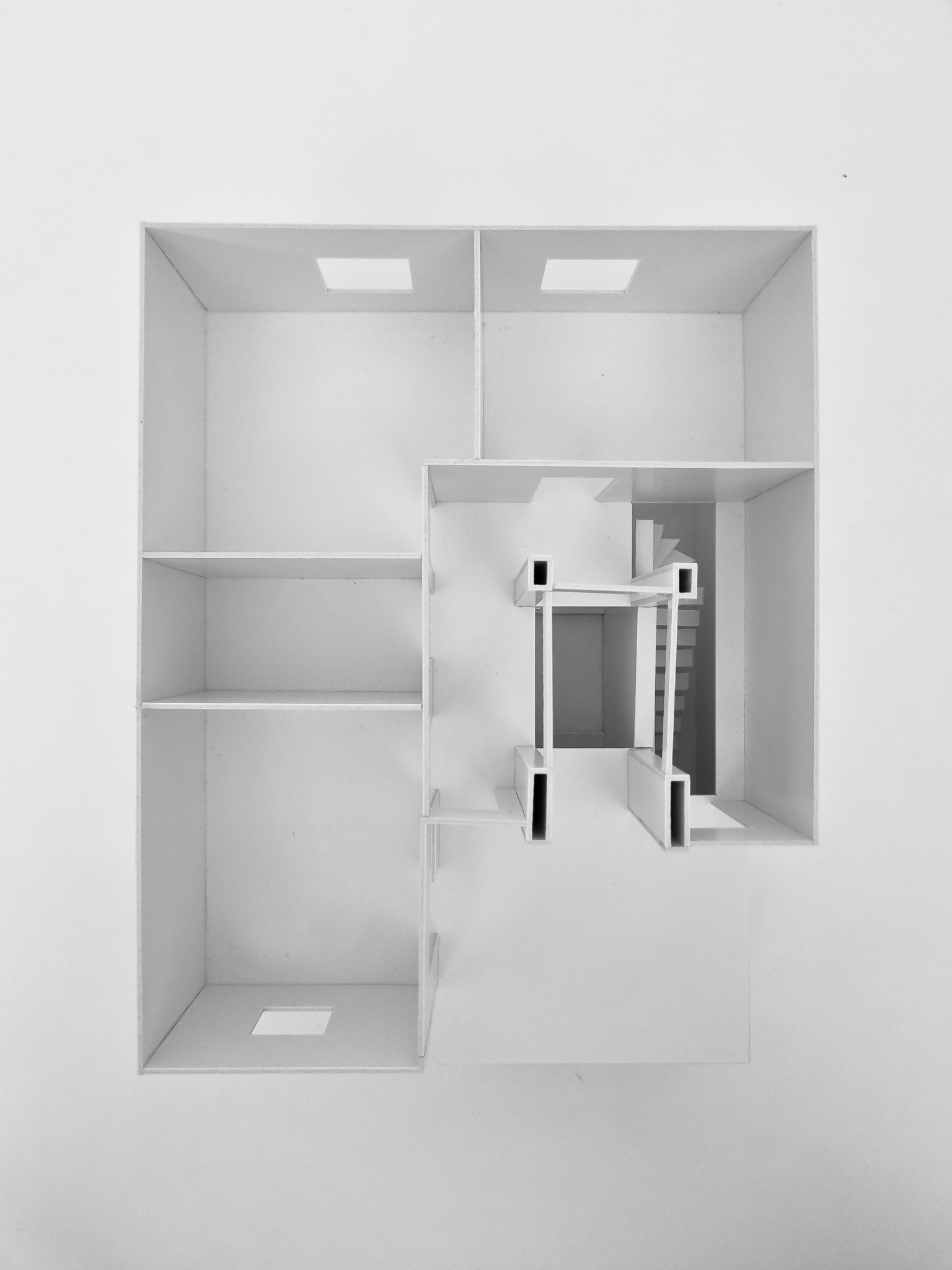

(14) Model of the first floor of the 145sqm variant out of machined paper
(15) Model of the second floor of the 145sqm variant out of machined paper
