[4 decks]
location ... Sweden, Dorotea, Borgafjäll
year ... 2025
status ... in progress
. . .
4 decks for cabin. Due to the significant height difference on the site, the design aims to create a structure that feels light, while still spanning a significantly longer distance than conventional deck design typically allows. The design was created parametrically using Grasshopper, with analysis conducted using Karmaba3D. Enabling a workflow where the designs are iterated through and rapid, automatic FEM-analysis guides the design decisions, all in real time.
. . .
design & analysis

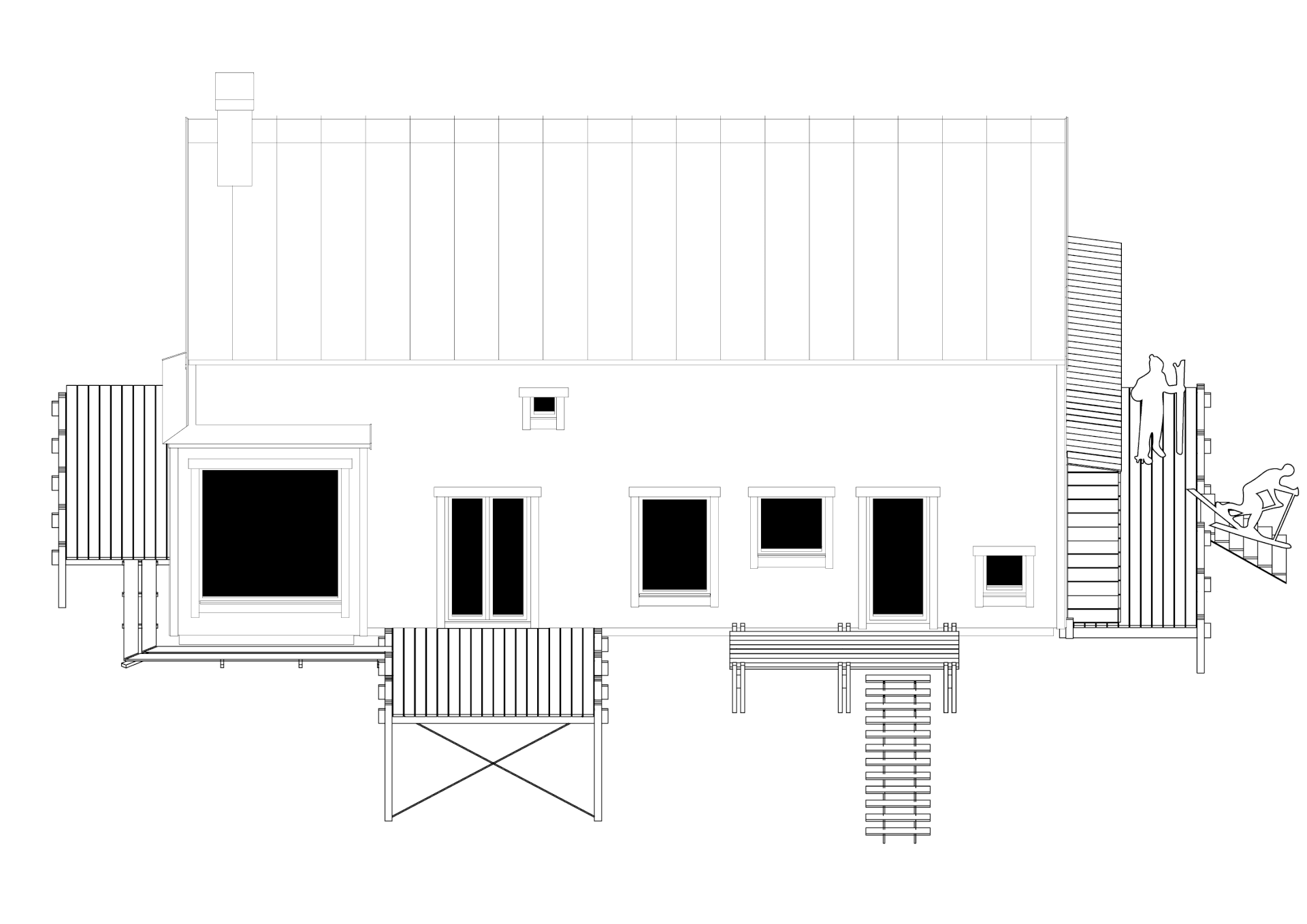

(1) Orthographic diagram of decks

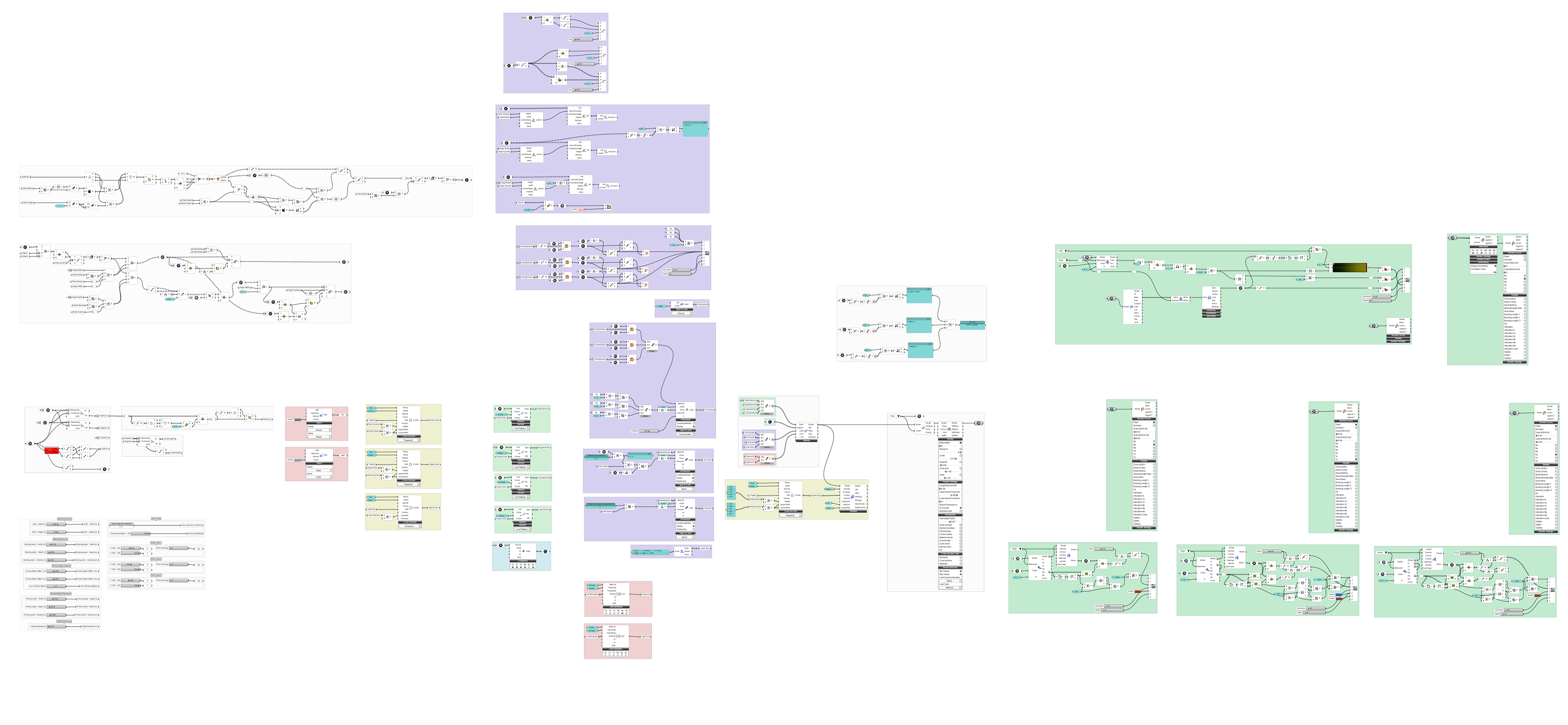

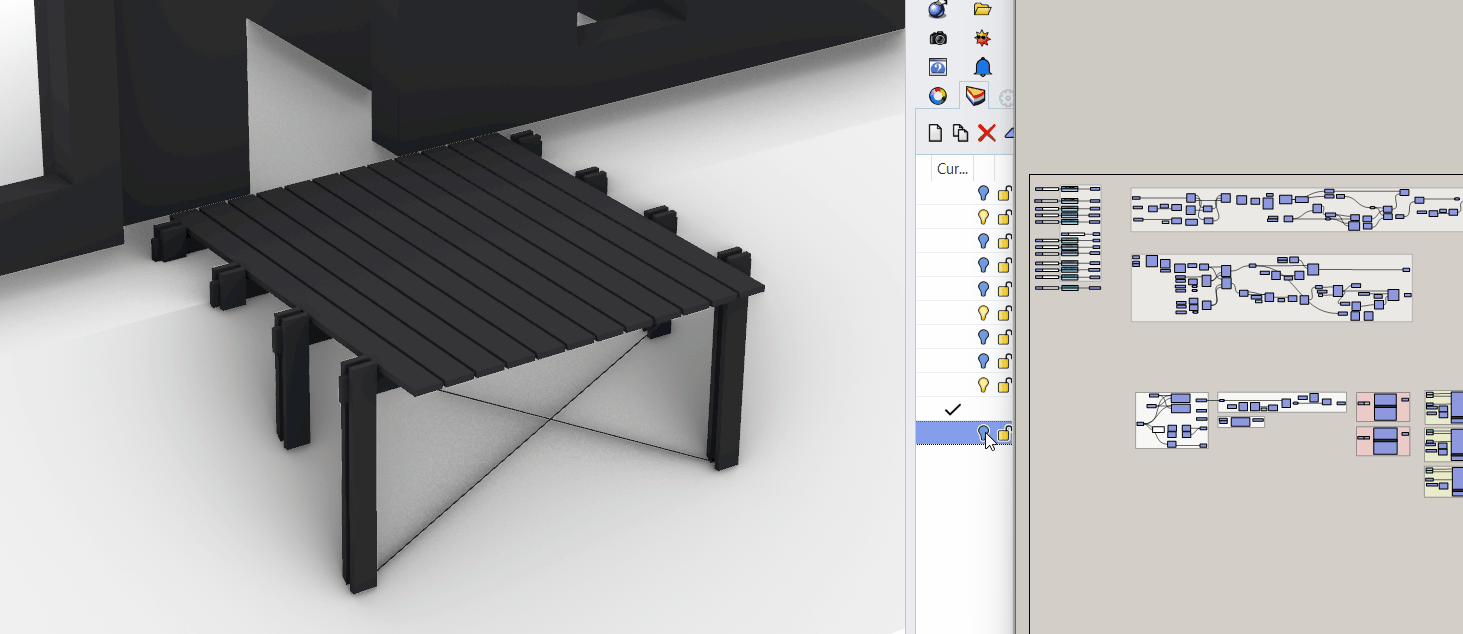

(2) Script for structural analysis and geometric defintion

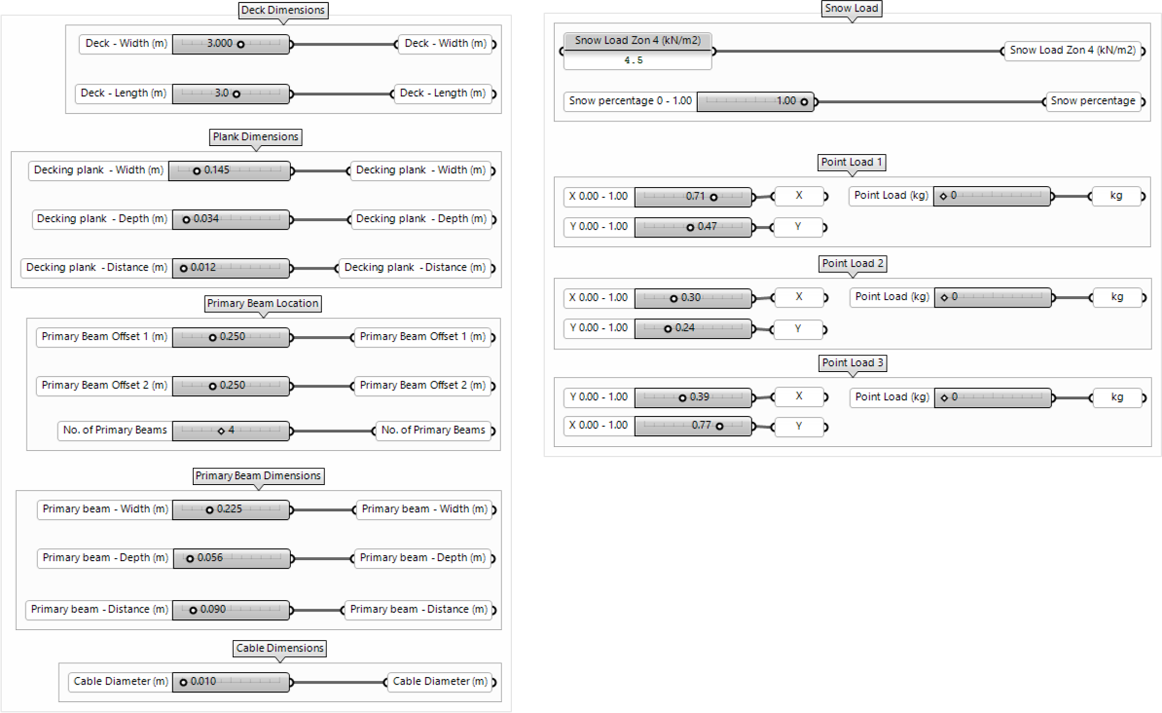

(3) Script inputs

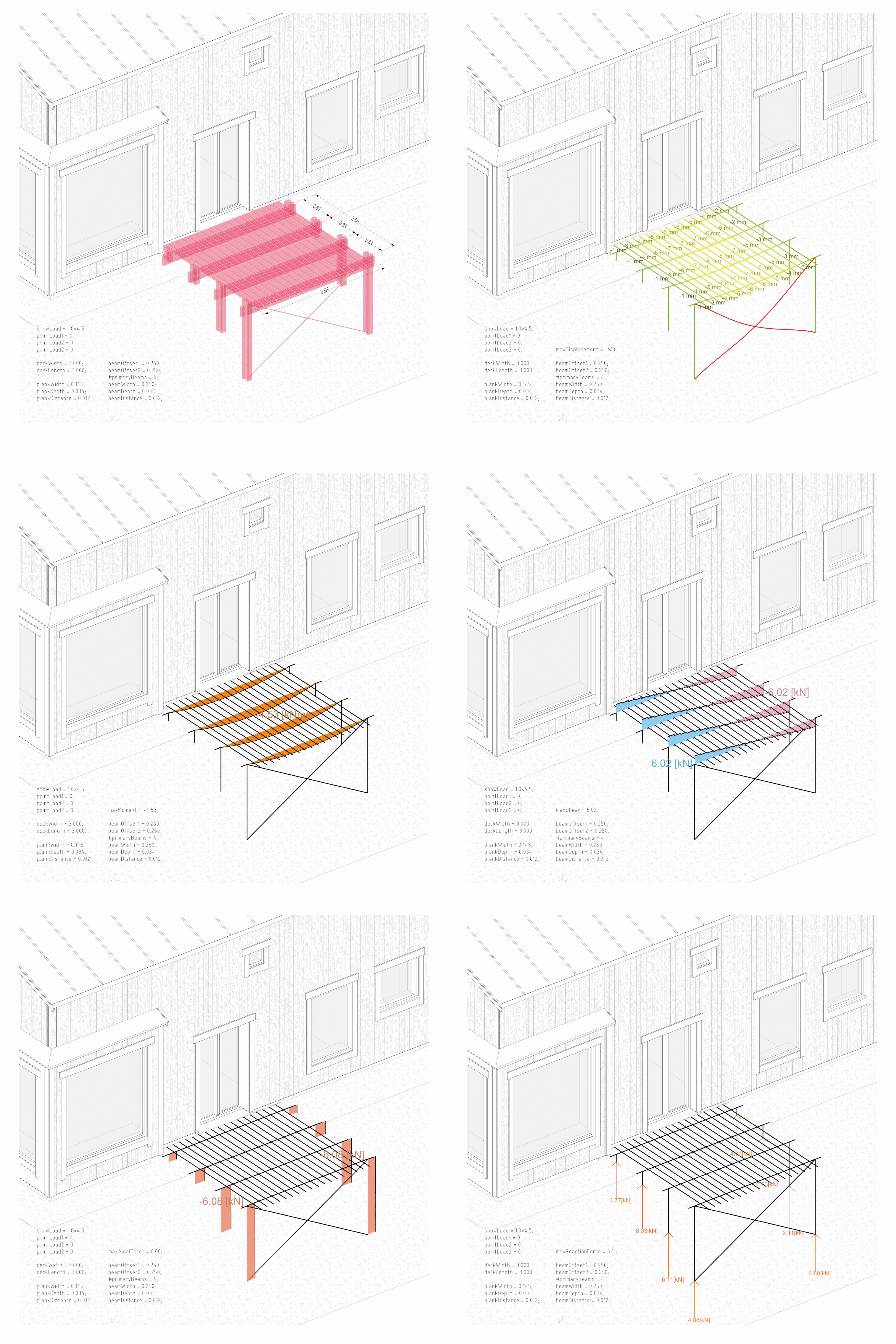

(4) Diagrams from structural prototyping
finalized design

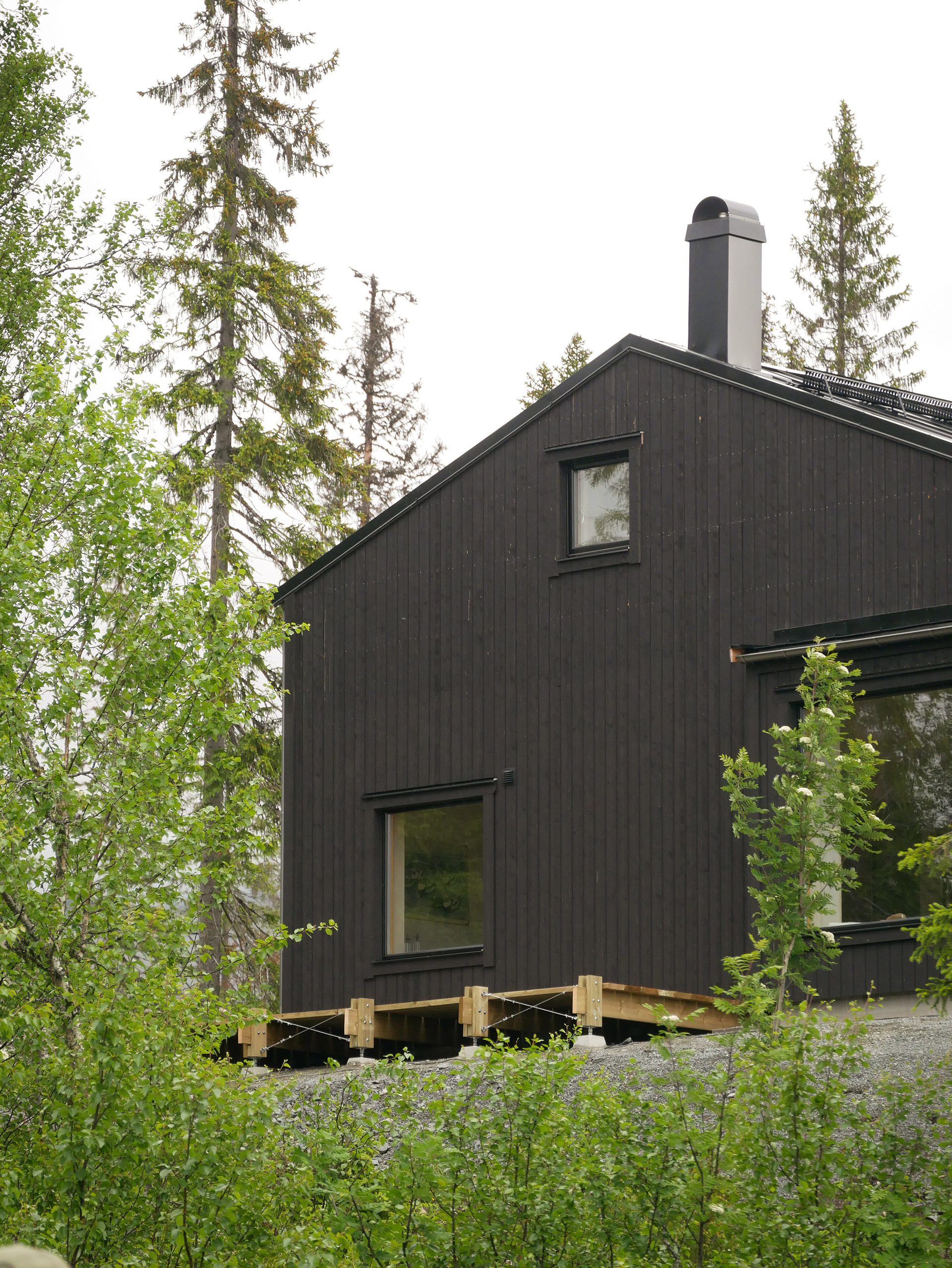

(5) All decks
(6) All decks

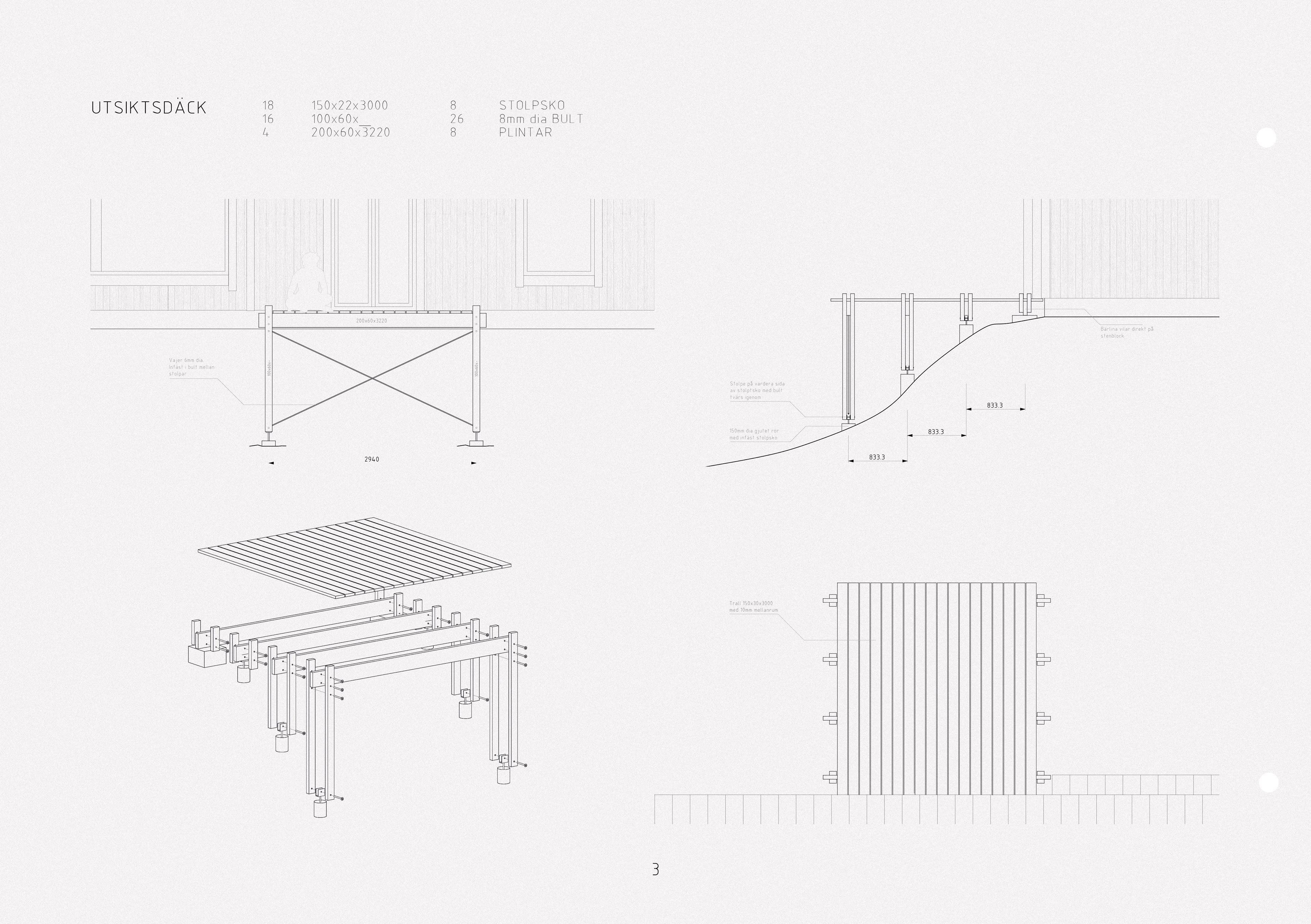

(7) Utsiktsdäck - drawing

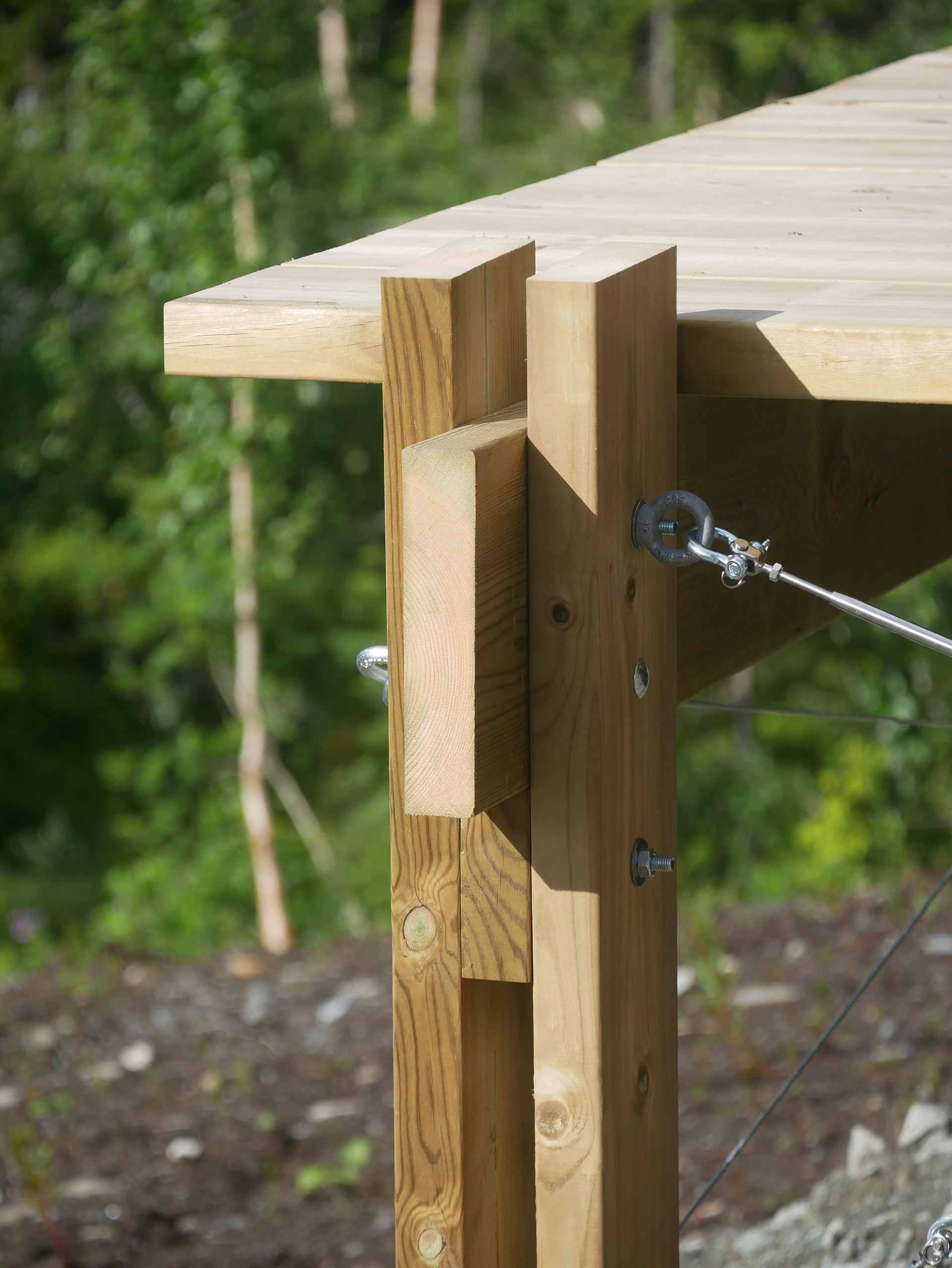

(8) Utsiktsdäck - image
(9) Middagsdäck - drawing
(10) Middagsdäck - image
(11) Bastudäck - drawing
(12) Bastudäck - image
(13) Gavelförråd - drawing
(14) Gavelförråd - image
